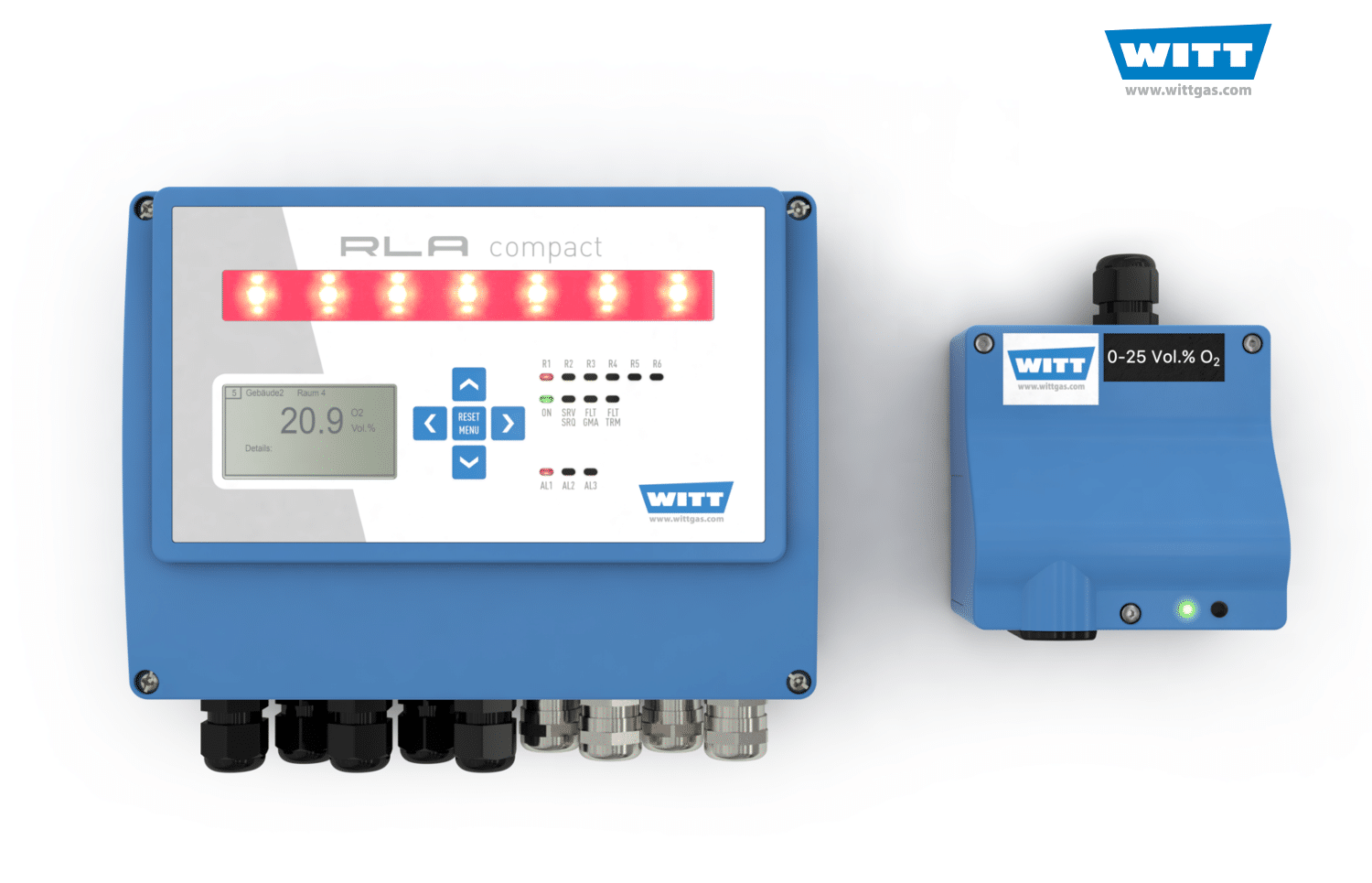

Ambient Air Monitoring System RLA Compact

Ambient air monitoring for the detection of combustible and toxic gases or oxygen (O2), 1 to 4 transmitters

• connection of up to 16 transmitters for different gases
• with digital display and LEDs
• 6 internal relays, 4 of them freely programmable
• alarm light and horn

Descriptions

Ambient Air Monitoring System for the detection of combustible and toxic gases or oxygen (O2)

Benefits :

• connection of up to 4 transmitters for different gases
• easy programming of the measurement range, the measurement designation, the type of transmitter and the type of gas can be set individually as well as three alarm thresholds
• 6 internal relays, 4 of them freely programmable
• reliable steady measuring results and high accuracys –
  • allocation of one or more measurement points to relay
  • single alarm per measurement point
  • single alarm per alarm threshold
  • configuration of collective alarm and group alarm
  • error report and voting function
• large illuminated graphic display with traffic light function for continuous visual monitoring of the gas concentration
• with integrated alarm transmitter (signal light and -audible alarm)
• easy wall mounting
• Transmitters –
  • with status and function display
  • long lifetime of sensors
  • setting without opening of housing via keystroke
  • on site alarm by integrated horn (optionally)

Options:

• 2GB micro SD memory card for saving measurement values, averages, alarm events and errors in individual intervals
• flow-through adapter for sensor check and calibration

Components :

1. Control and Display Unit
2. Transmitter/s
3. Transmitter cable for connecting of Transmitter and Control Unit

Click here for – Ambient Air Monitoring System RLA  Data Sheet
