£95.00 £114.00 (Inc. VAT)

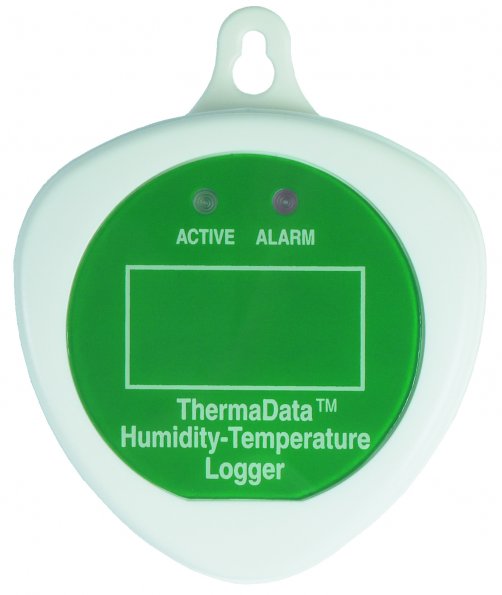

HTB humidity data logger – ThermaData logger
Product code: 295-061
Description
The HTB Humidity Data Logger is a portable blind humidity logger that measures and records both relative humidity (% RH) and temperature over the range of -20 to 85°C and 0 to 100% RH.
At programmable intervals, the HTB humidity logger will record simultaneously both temperature and humidity, recording up to a maximum of 16,000 readings (8,000 humidity and 8,000 temperature).
The ThermaData HTB humidity data logger includes internal humidity and temperature sensors.
Each humidity logger incorporates a red and green LED, the flashing green LED indicates that the logger is active/logging and the flashing red LED indicates that your customised pre-set alarms have been exceeded.
The humidity and temperature ThermaData loggers are suitable for a diverse range of applications which include HVAC climate monitoring, QA control or storage areas and many more.
Please note: when ordering loggers it is necessary to order at least one ThermaData logger cradle.
Technical Data | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Specification | Temperature | Humidity | |||||||||||||||||||||
Measurement Range | -20 to 85°C | 0 to 100%rh | |||||||||||||||||||||
Resolution | 0.1°C | 0.1rh | |||||||||||||||||||||
Accuracy | ±0.5°C (0 to +45°C) ±1°C (-20 to +70°C) ±1.5°C (+70 to +85°C) |
±2%rh @ +25°C (10 to 90 %rh) | |||||||||||||||||||||
Hysteresis | n/a | ±1%rh | |||||||||||||||||||||
Sensor Type | silicone bandgap | capacitance polymer | |||||||||||||||||||||
Memory | 2 X 8000 readings | 2 x 8000 readings | |||||||||||||||||||||
Sample rate | 0.1 to 255 minutes | 0.1 to 255 minutes | |||||||||||||||||||||
Battery Type | 3.6 volt half AA lithium | 3.6 volt half AA lithium | |||||||||||||||||||||
Battery Life | 2 years minimum | 2 years minimum | |||||||||||||||||||||
Display | 10mm LED | 10mm LED | |||||||||||||||||||||
Display | toggles every 6 seconds / 2 LEDs | toggles every 6 seconds / 2 LEDs | |||||||||||||||||||||
Dimensions | 76 x 23mm | 76 x 23mm | Weight | 80 grams | 80 grams |
