£315.50 £378.60 (Inc. VAT)

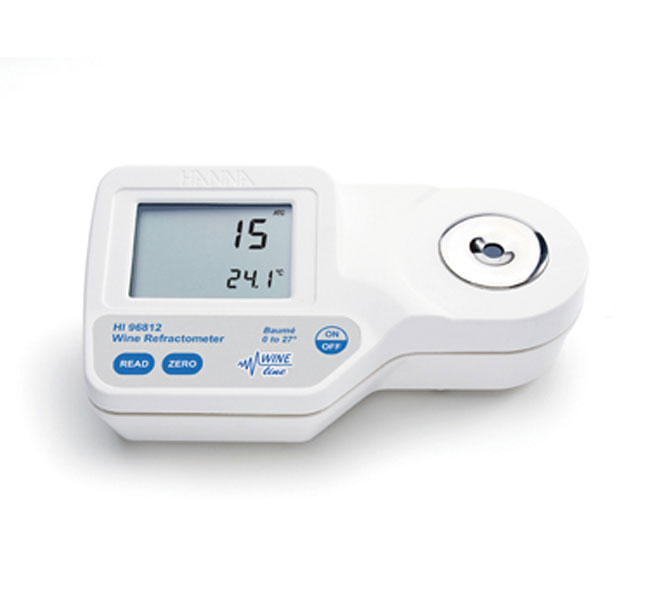

Refractometer for Wine 0 to 27% Baumé scale
Measures the refractive index and displays in °Baumé. The °Baumé scale is based upon the density of liquids and is used to measure the sugar levels in winemaking.
| Technical Data | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Range | Sugar Content 0 to 27 °Baumé | ||||||||||||||||||||||
| Range | 0 to 80°C (32 to 176°F) | ||||||||||||||||||||||
| Resolution | Sugar Content ±0.1 °Baumé | ||||||||||||||||||||||
| Resolution | Temperature ±0.1°C (0.1°F) | ||||||||||||||||||||||
| Accuracy | Sugar Content ±0.1 °Baumé | ||||||||||||||||||||||
| Accuracy | Temperature ±0.3°C (0.5°F) | ||||||||||||||||||||||
| Automatic Temperature Compensation | between 10 and 40°C (50 – 104°F) | ||||||||||||||||||||||
| Measurement Time | Approximately 1.5 seconds | ||||||||||||||||||||||
| Minimum Sample Volume | 100 µL (to cover prism totally) | ||||||||||||||||||||||
| Light Source | Yellow LED | ||||||||||||||||||||||
| Sample Cell | Stainless steel ring and flint glass prism | ||||||||||||||||||||||
| Case Material | ABS | ||||||||||||||||||||||
| Enclosure Rating | IP65 | ||||||||||||||||||||||
| Battery Type / Life | (1) 9V / 5000 readings | ||||||||||||||||||||||
| Auto-Off | After 3 minutes of non-use | ||||||||||||||||||||||
| Dimensions | 19.2(W) x 10.2(D) x 6.7 (H)cm | ||||||||||||||||||||||
| Weight | 420g | ||||||||||||||||||||||
