HI-991301 High Range EC, TDS, pH and °C Meter

£771.60 £925.92 (Inc. VAT)

Product Description

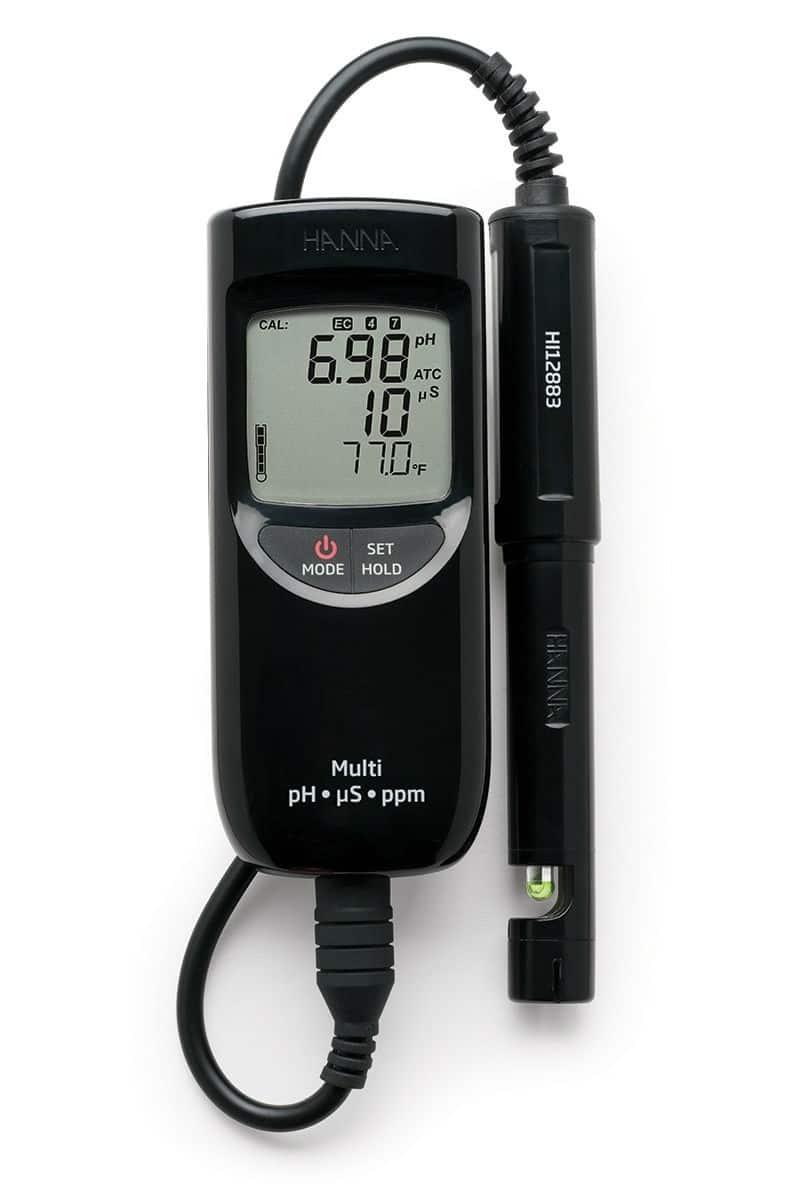

HI-991301 High Range EC, TDS, pH and °C Meter

Complete with probe

2 year manufacturer warranty

The HI-991301 is a light weight, portable pH, conductivity and temperature meter for

portable applications requiring both a pH and conductivity measurement. Applications include

measurements for greenhouses irrigation, hydroponics and groundwater monitoring from

agriculture nutrient pollution.

The HI-991301 meter features two operation button and is simple to use. All operations and

settings, including calibration buffers and temperature scale selections, are made through

these two buttons. It has a waterproof and compact casing rated for IP67 conditions and a

large tri-line display. The meter has automatic pH calibration at one or two points and a

single conductivity calibration. Other user selectable features include different TDS

factors from 0.45 to 1.00, and a range of temperature coefficients from 0.0 to 2.4% for

better conductivity or TDS solution temperature compensation. The meter is supplied with a

multi-parameter probe specifically designed for this meter.

Main features:

Simultaneous, pH, EC/TDS and temperature measurements on a large three line LCD
display

Selectable temperature unit

pH electrode condition display

mV of pH measurement for electrode check

Last calibration points pH and EC

HI-12883 dedicated pH/EC/TDS/temperature probe

Probe quick connect system

Battery life indication and low battery detection

Auto-off function

Keystroke confirmation tone

Waterproof casing IP67

Each meter is supplied complete with:

HI-12883 pH/EC/TDS probe with built-in temperature sensor, DIN connector and 1mm
cable

pH 4.01 & 7.01 buffer sachets

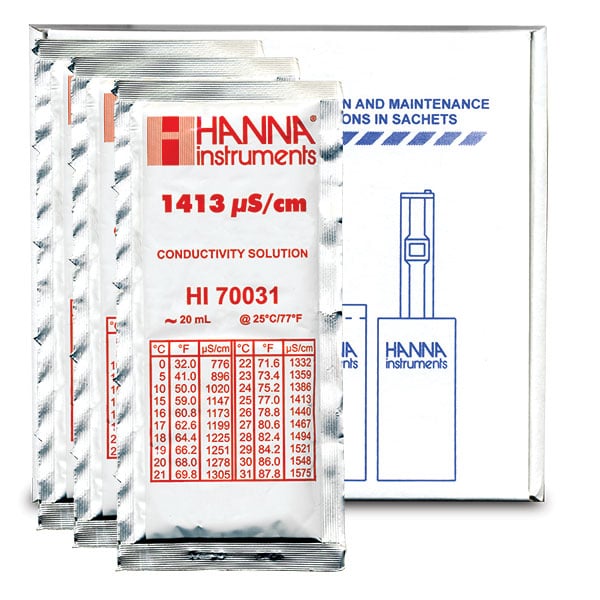

HI-70030 12880 µS/cm and HI-70038 6.44 ppt calibration solution – 1 sachet of each

HI-700601 Electrode cleaning solution (2 sachets)

Rugged carrying case

Calibration certificate of meter

Calibration certificate of probe

Instruction manual

100mL beaker

Alkaline batteries: 1.5V AAA x 3

Instruction manual

About the HI-12883 probe

The HI-12883 multi-parameter probe, incorporates a domed shaped pH bulb rated from 0-13 pH,

a single junction Ag/Cl reference electrode with gelled electrolyte and a retractable cloth

wick junction, a graphite EC/TDS cell, and a temperature sensor in one convenient, rugged

polypropylene body. In addition, to ensure against interference from transient electrical

noise to pH, a solid-state pre-amplifier is integrated into the probe. The probe is rated

from 0 to 50°C.

Specifications
pH Range	-2.00 to 16.00 pH*
pH-mV	±825 mV (pH-mV)
EC	0 .00 to 20.00 mS/cm**
TDS	0.00 to 10.00ppt (g/L)
Temperature Range	-5.0 to 105.0°C
pH Resolution	0.01 pH
pH-mV Resolution	1 mV
EC	1µS/cm
TDS	1ppm (mg/L)
Temperature Resolution	H0.1°C°
pH Accuracy @20°C	±0.02 pH
pH-mV	±1 mV
EC/TDS	±2%F.S.
Temperature Accuracy	±0.5°C
pH Electrode	HI-12883 pH/EC/TDS temperature sensor, Quick Connect DIN connector and 1 m (3.3′) cable (included); please note: HI-12883 is limited to be used from 0 to 13 pH and from 0 to 50°
TDS Conversion factor	Selectable from 0.45 to 1.00 with 0.01 increments
Battery Type / Life	3 x 1.5V AAA / approx. 600 hours of continuous use
Environment	0 to 50°C (32 to 122°F); RH max 100%
Dimensions	154 x 63 x 30 mm
Weight	196g
Casing ingress protection rating	IP67
Ordering information	HI-991301 is supplied with HI-12883 pH/EC/TDS probe with built-in temperature sensor, DIN Connector and 1m cable, pH 4.01 and 7.01 buffer sachets, HI-70030 12880 µS/cm and HI-70038 6.44 ppt calibration solution sachets, HI-700601 electrode cleaning solution sachets (2), 100mL beaker, 1.5V AAA batteries (3), calibration certificate of meter, calibration certificate of probe, instruction manual and HI-710142 rugged carry case.
