£518.36 – £1,702.12
The MadgeTech RTDTempX temperature data logger is available with 4, 8, 12 and 16 4-wire inputs, designed for precision data collection with optional RTD or PT100 temperature probes.
For precise collection of temperature data, choose MadgeTech’s RTDTempX temperature data logger with probes. With multiple channels available (4, 8, 12 or 16) this temperature monitoring device is versatile and would be suitable for a range of facilities looking to meet government compliance. The RTD or PT100 temperature probes are sold separately and can be easily connected to your data logger via the screw terminals.
This MadgeTech multi-channel data logger has excellent features including an 18 month battery life, fast recording speeds up to 4Hz and 2.7 million data collection points, making it suitable for use in a range of industries.
Our experts would be more than happy to connect any sensors to your temperature logger for you. As well as this, we offer a system calibration service to those who need to adhere to specific regulatory compliance.
The MadgeTech MT4 software is fully compatible with this temperature data logger, facilitating easy data collection and reporting to increase visibility across your entire facility. Users can present data in detailed graphs and tables, depending on individual preferences.
The RTDTempX temperature data logger is accompanied with the following:
For more information about the RTDTempX temperature data logger and the benefits it could bring to your facility, get in touch with our friendly team today.
| Manufacturer | Madgetech |
|---|---|
| Parameter(s) | Temperature |
| Usage Type | Multi use |
| Connectivity | USB-A to micro USB cable (included); 460,800 baud |
| Sensor internal or external | External |

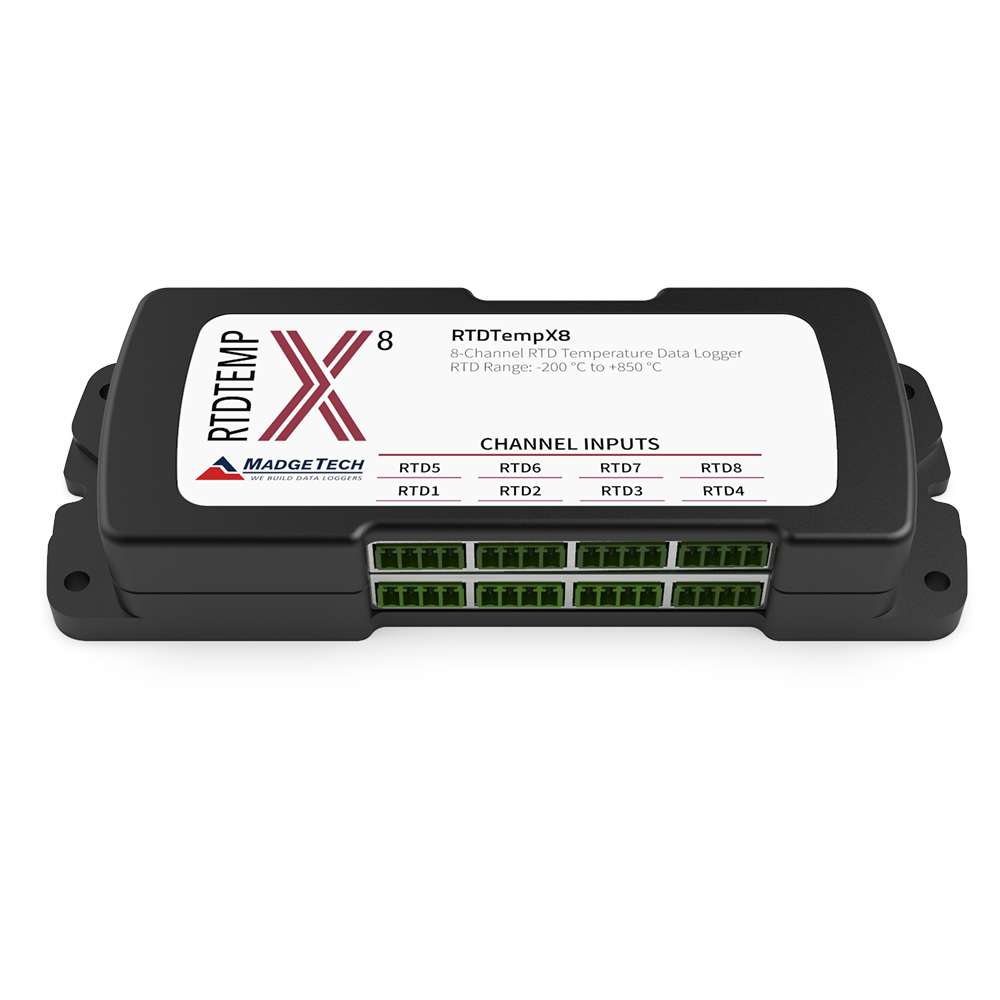

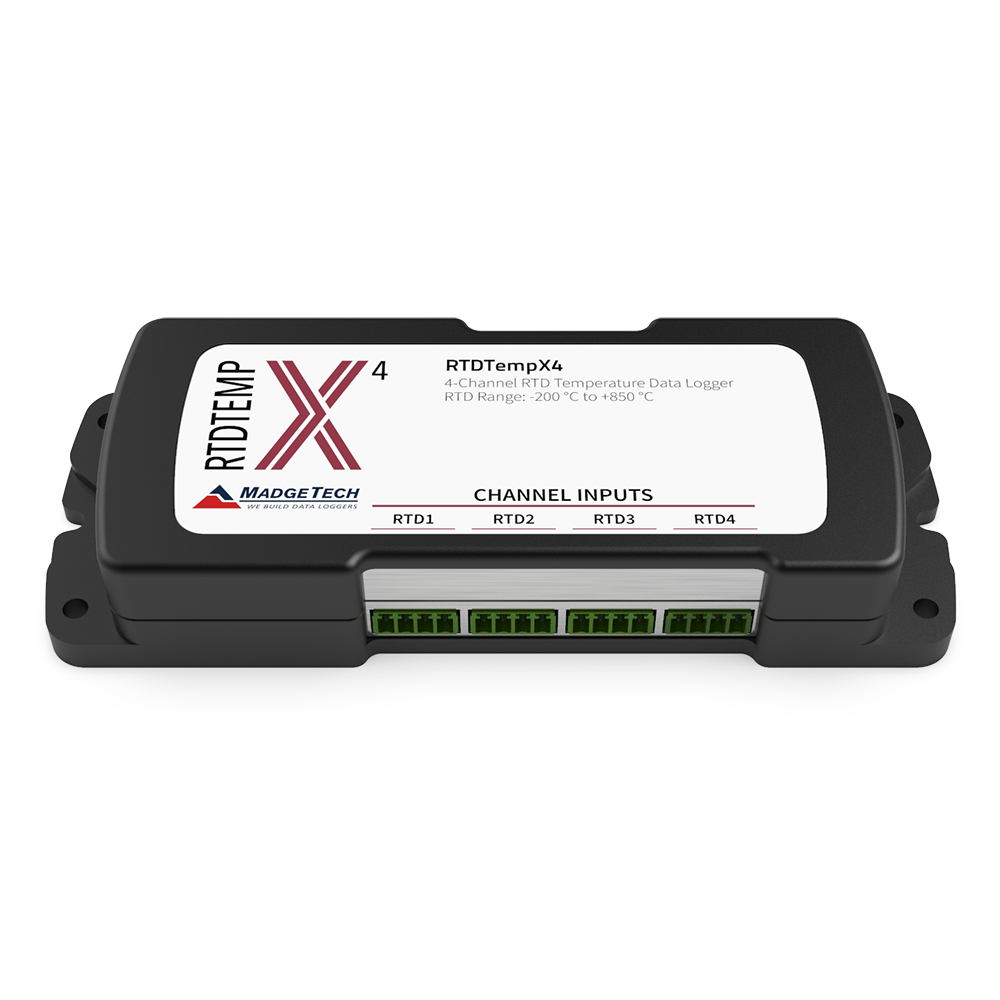

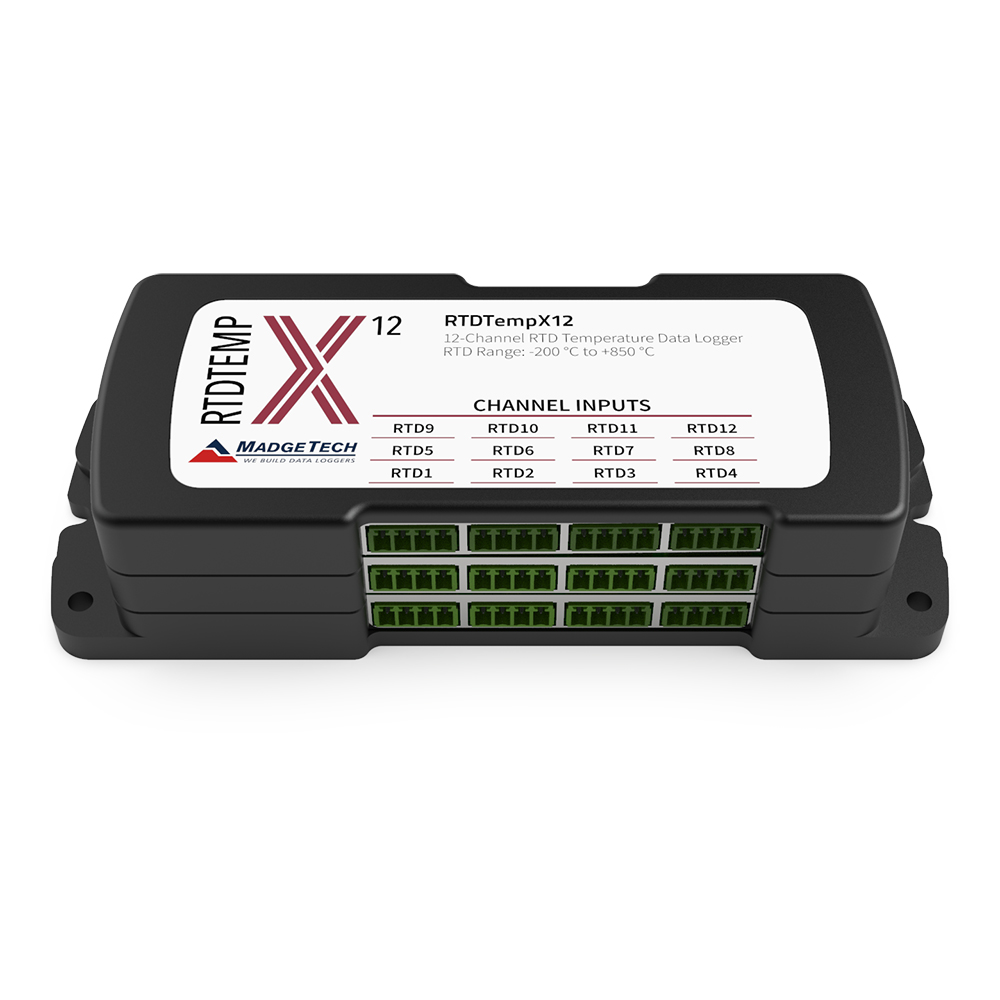

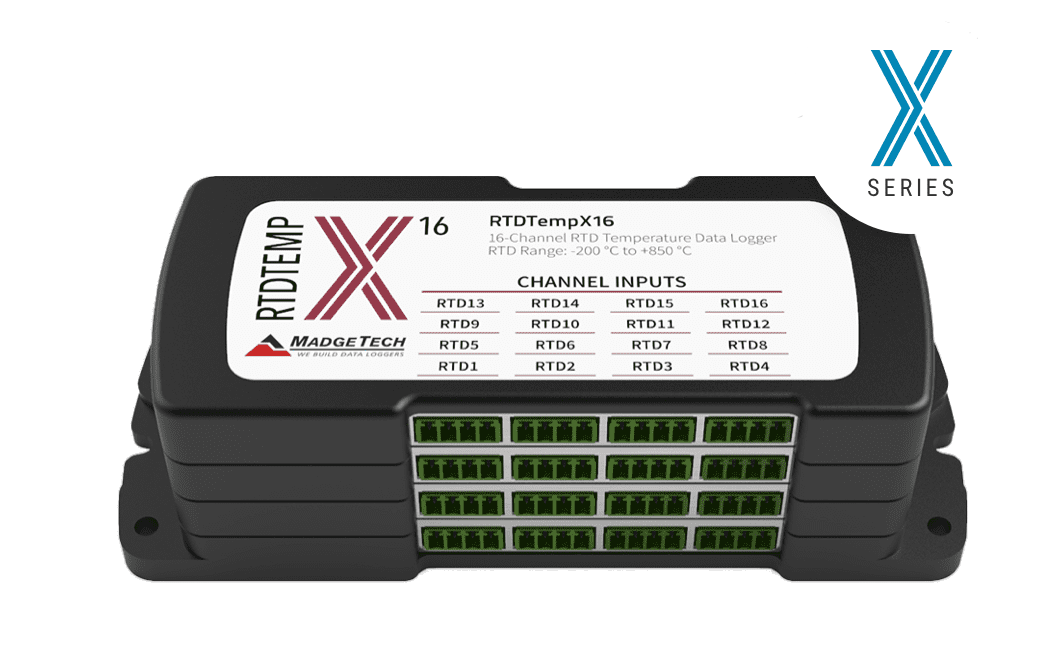

| Channels | RTDTempX4|PN 902175-00|4-Channel RTD Data Logger RTDTempX8|PN 902176-00|8-Channel RTD Data Logger RTDTempX12|PN 902173-00|12-Channel RTD Data Logger RTDTempX16|PN 902174-00|16-Channel RTD Data Logger |
| Sensor type | Pt100/RTD |
| Memory | 4-channel: 698,709 readings per channel 8-channel: 349,354 readings per channel 12-channel: 232,903 readings per channel 16-channel: 174,677 readings per channel |
| Sample rate | 4 readings a second up to 1 reading every 24 hours |
| Range | -200°C ~ +850°C |
| Accuracy | ±0.015 Ω @ 25 ºC Ambient ±0.04 °C (Probe Dependent) ±0.05°C -80°C ~ 0°C with 1/10 DIN probes |
| Resolution | 0.001°C |
| Material | Black anodized aluminium |
| Power | Battery 9V lithium Or mains supply via supplied power adaptor |
| Battery Life | 18 months typical |
| Dimensions | 4-channel: 65.6 mm x 184.2 mm x 31.0 mm 8-channel: 65.6 mm x 184.2 mm x 31.0 mm 12-channel: 65.6 mm x 184.2 mm x 42.7 mm 16-channel: 65.6 mm x 184.2 mm x 54.4 mm |
| Environment | IP54 |
| Operating Conditions | -20°C to +60°C 0 %RH to 95 %RH non-condensing |
| Alarm | In software |
| Features | Extremely accurate and robust 4 wire PT100 temperature data logger |
Available with 3 Point Calibration at request.
