Automatic measuring data backup when the battery runs out or is changed
Convenient Excel export functions
Data analysis: three different software versions available, basic software free to download
Displays violations of limit values
Click Here For the 174T Data Sheet –
Product Description

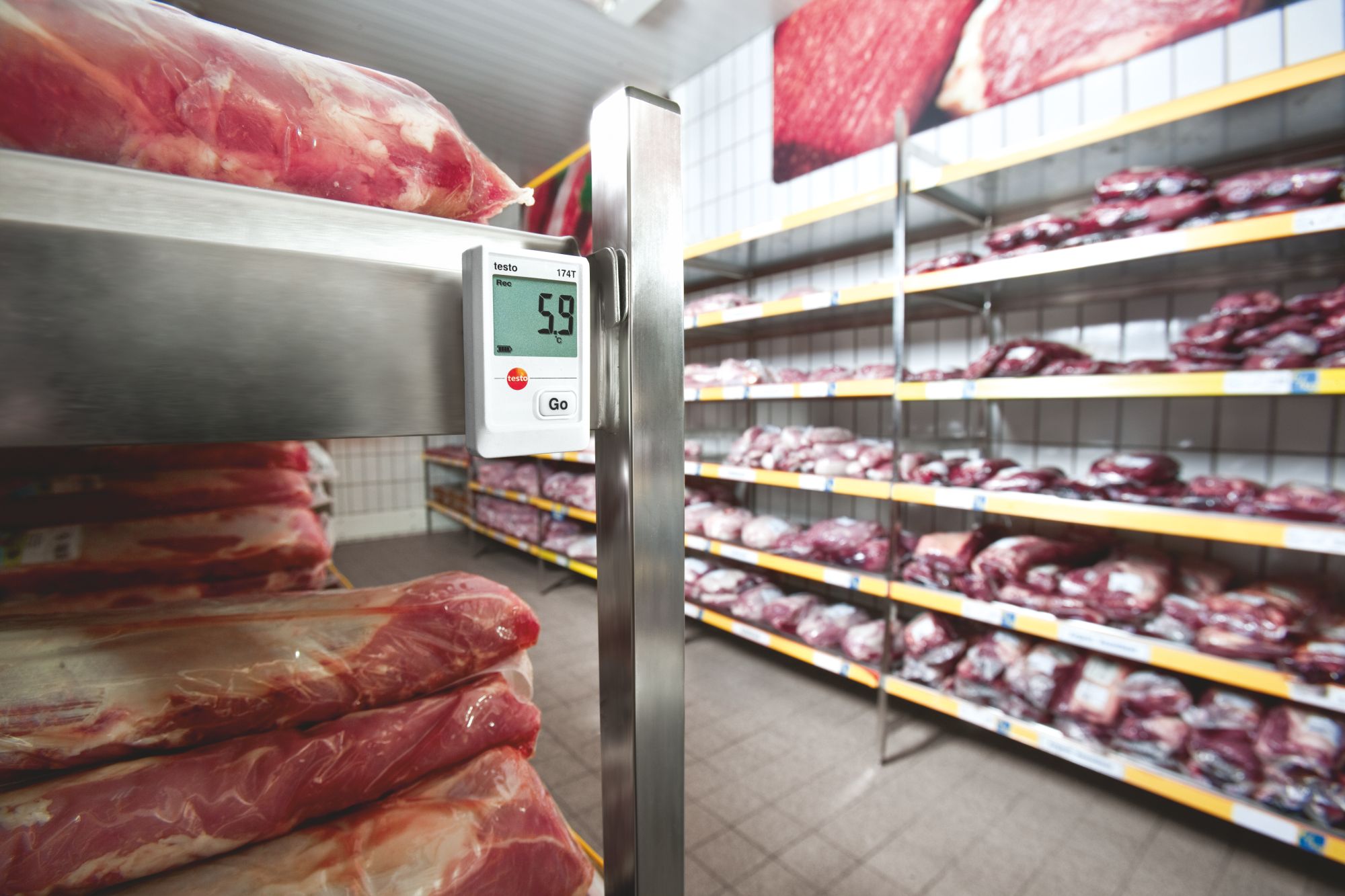

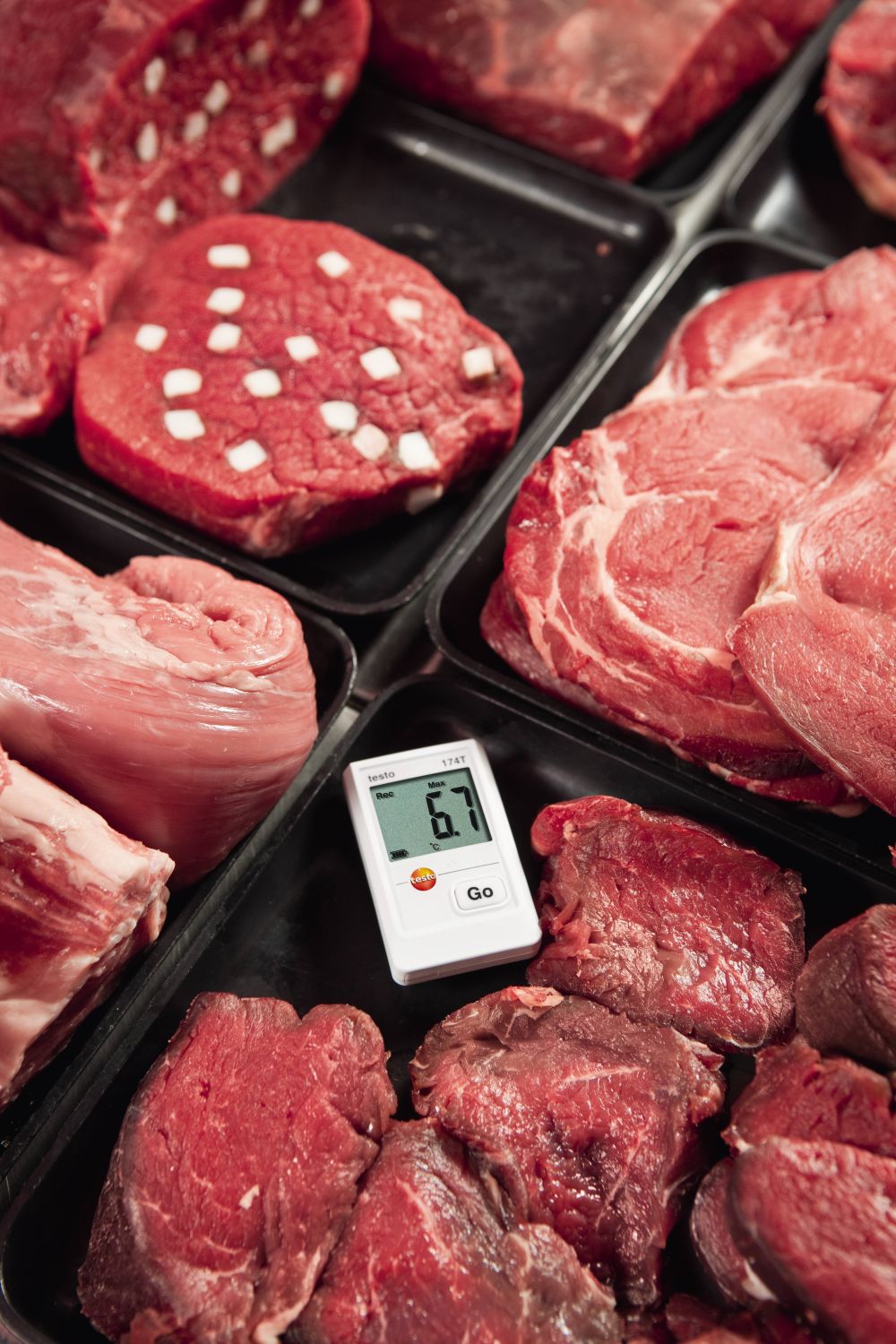

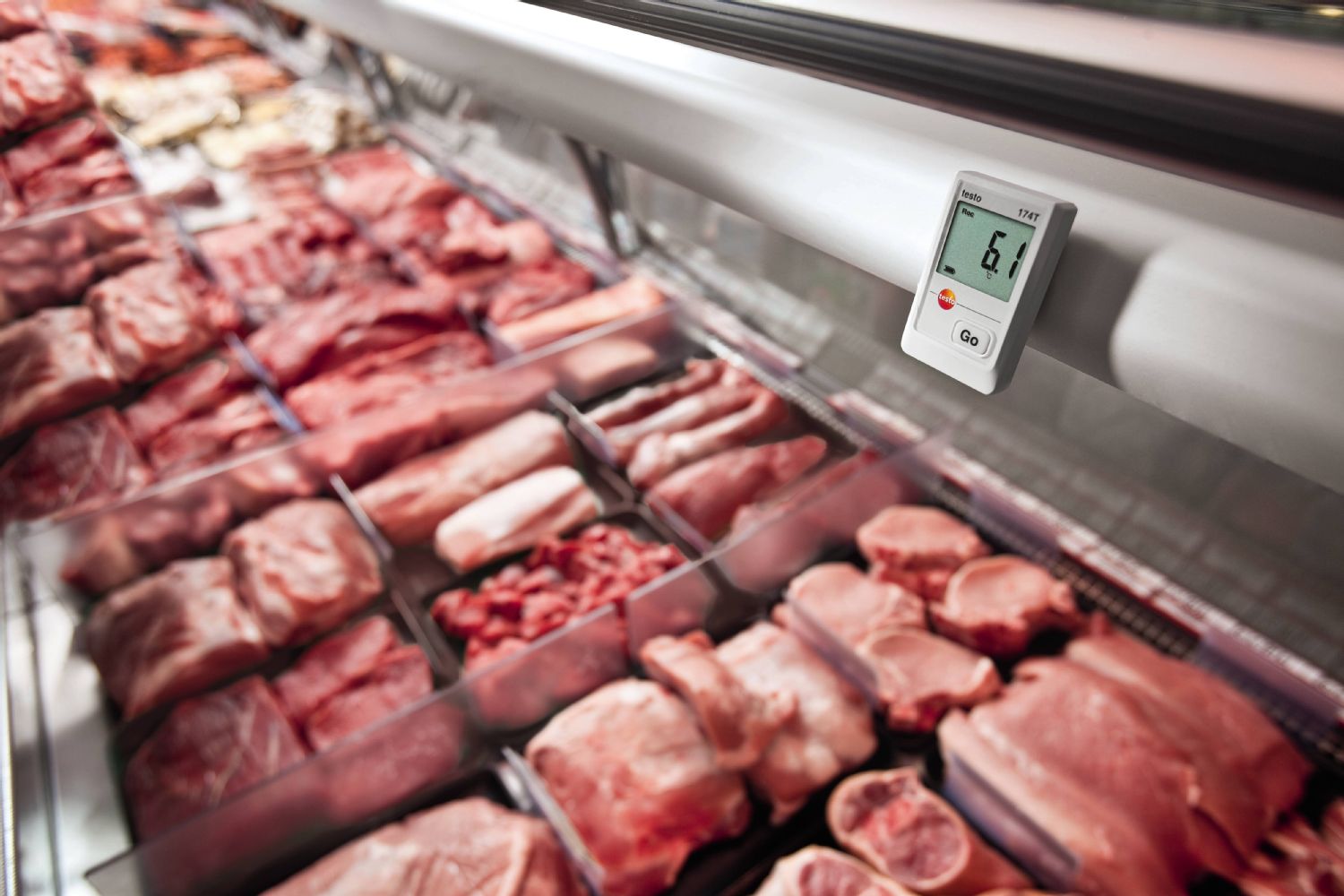

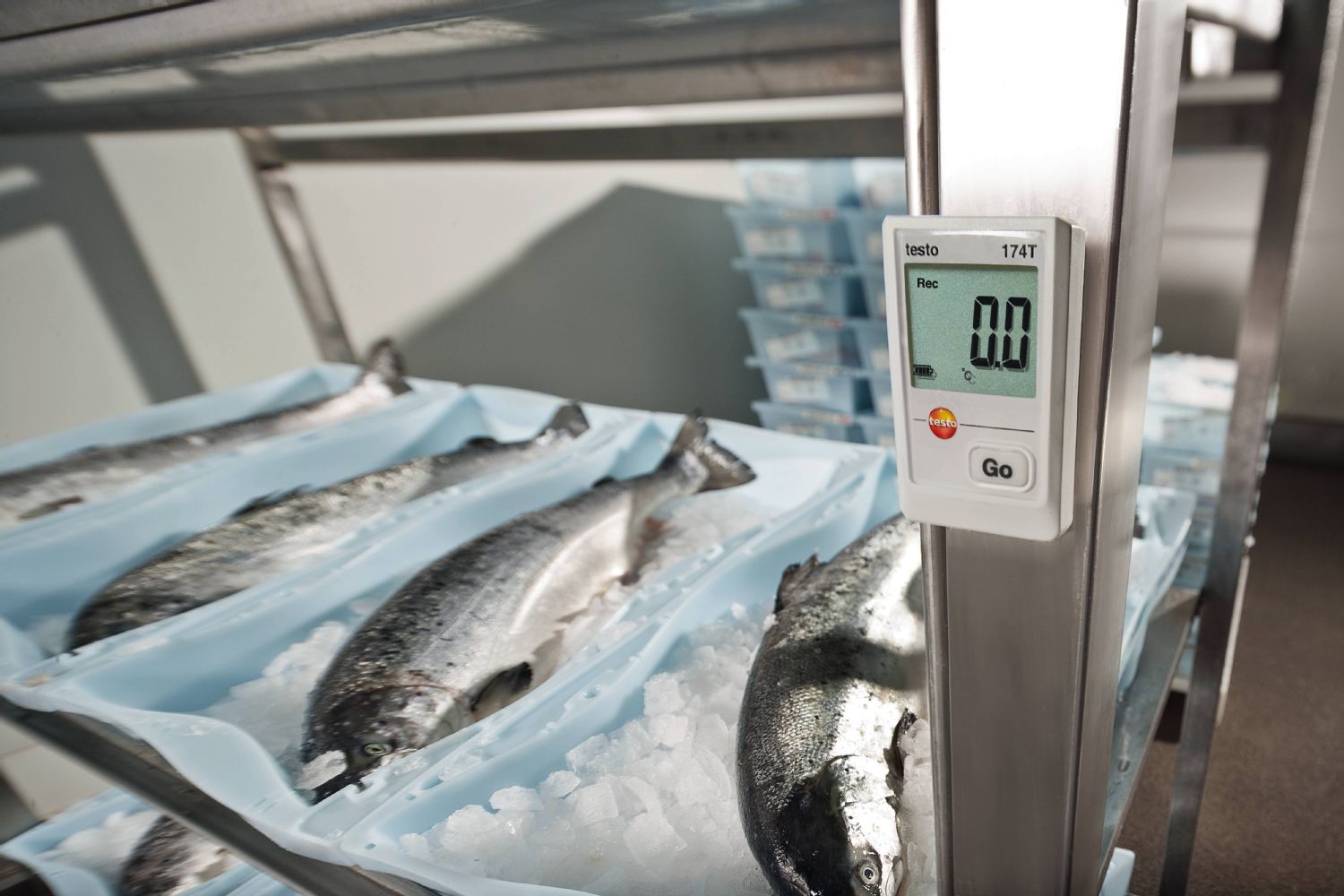

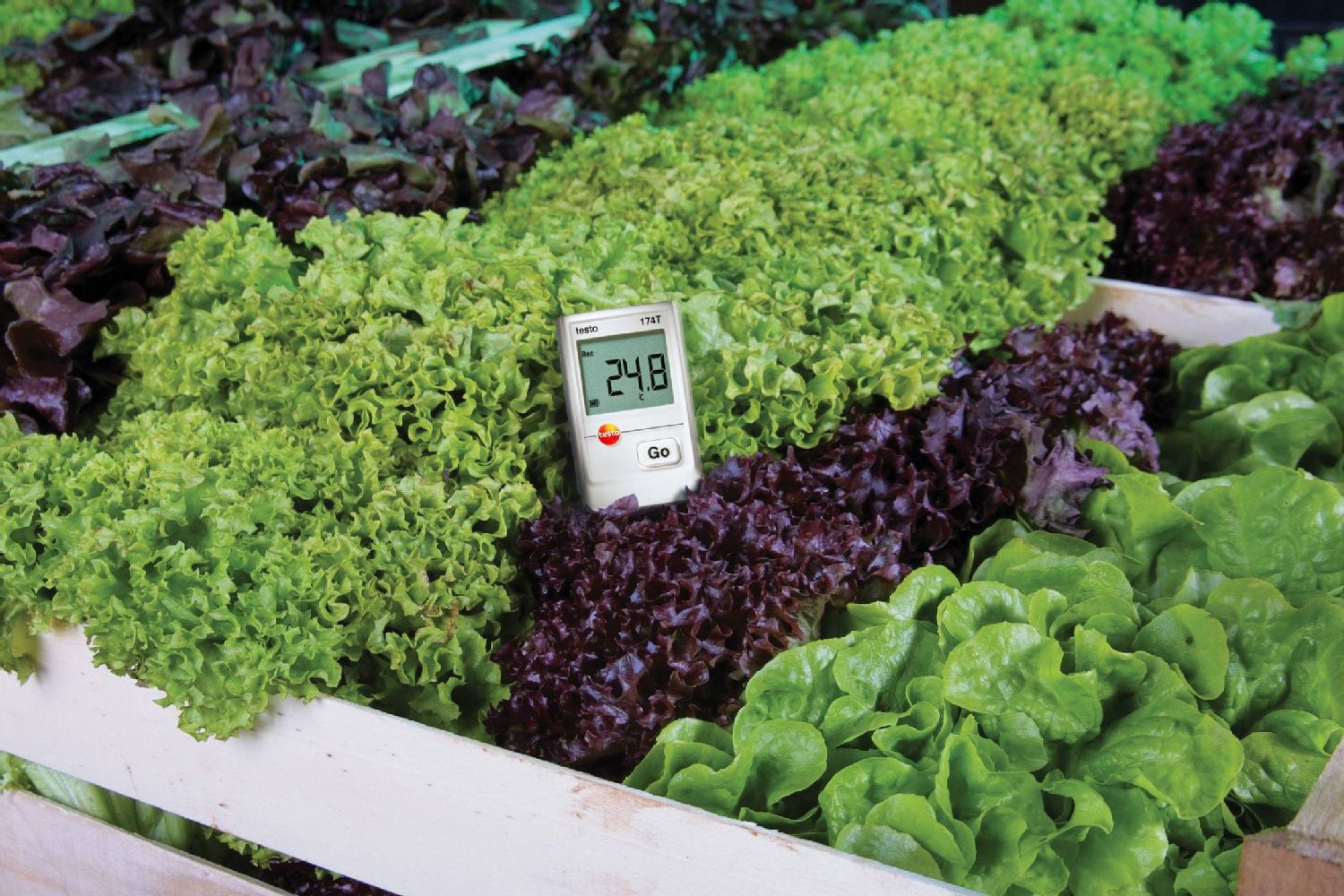

Ideal for continuous temperature measurements: With this kit, you will always be able to reliably monitor the storage temperature of pharmaceuticals or food, for example. The kit includes three testo 174T mini temperature data loggers, a USB interface and the ComSoft Basic software on CD-ROM for programming and reading the data loggers.
Details on kit components

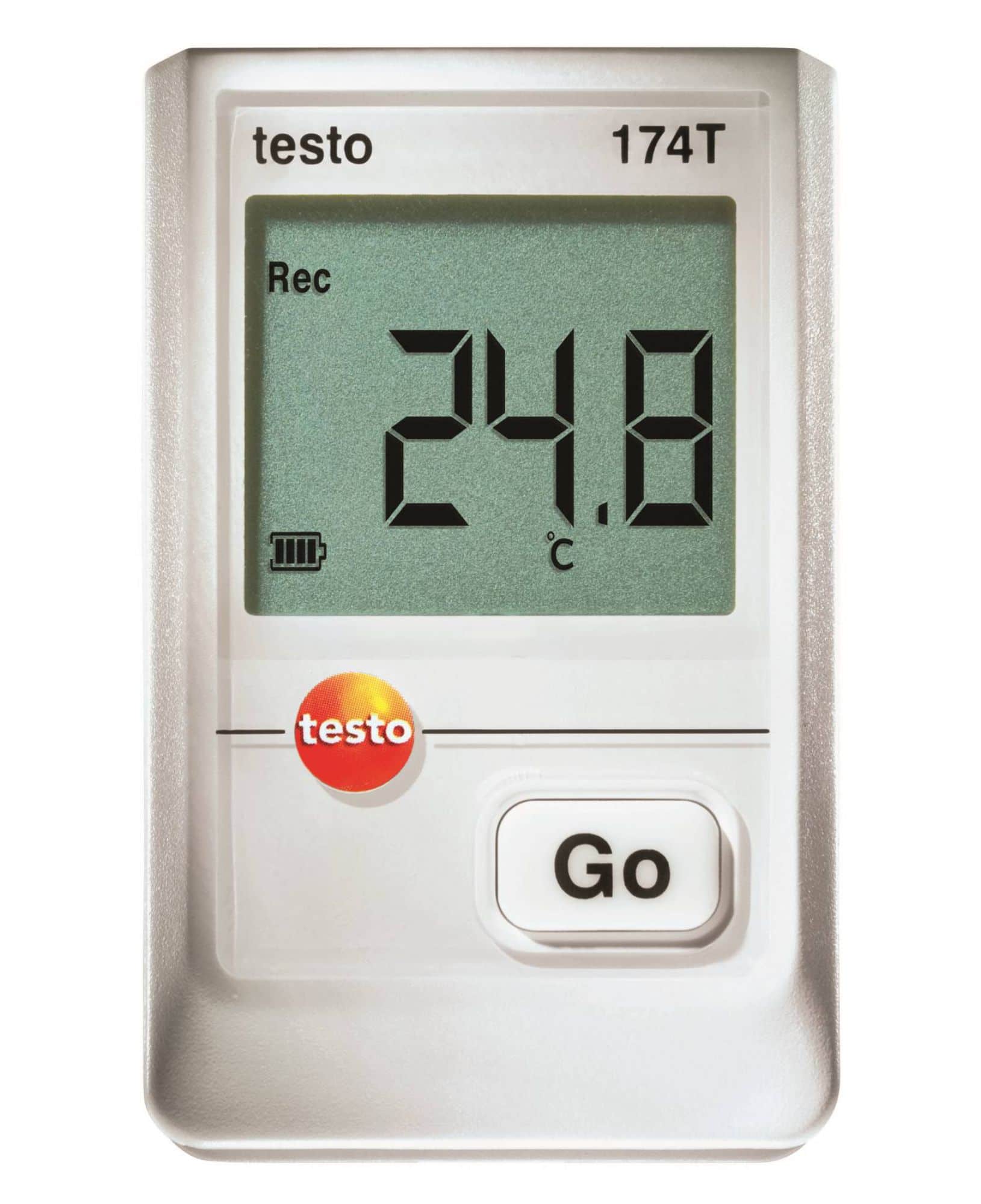

Testo 174T – Mini Data Logger
Order-Nr. 0572 1560
Measurement data memory for up to 16,000 readings
USB interface for data loggers
Order-Nr. 0572 0500
For transferring readings to your PC
Temperature measuring range from -30 °C to +70 °C
Testo ComSoft Basic v5 SP 6.3 – Logger software
Order-Nr. 0572 0580
Programme and read out Testo data loggers using the basic software
Particularly clear: graphic and tabular display of readings
Lithium battery, button cell, type CR 2032
Order-Nr. 0515 5028

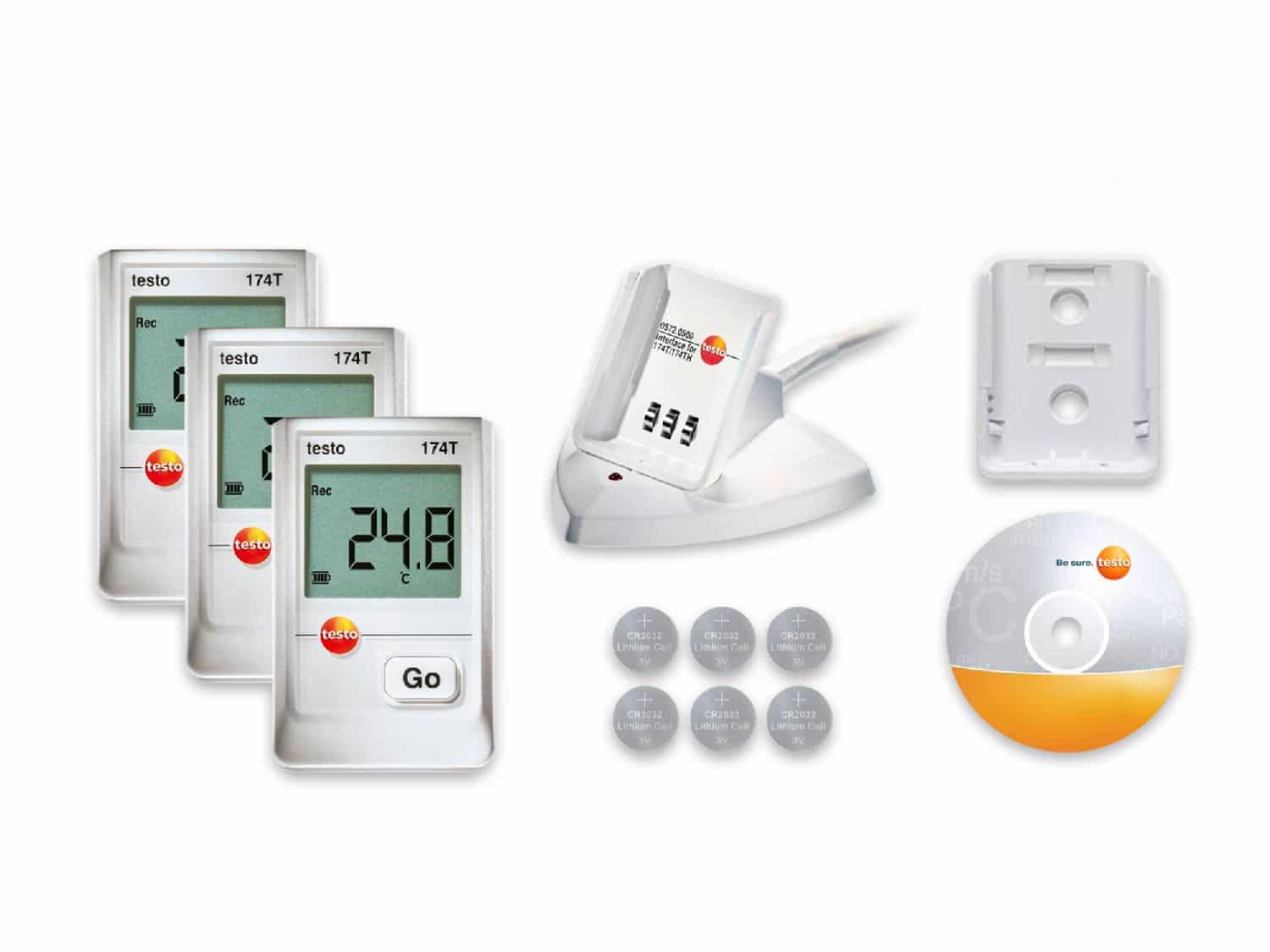

Delivery Scope
3 x testo 174T mini data loggers for temperature (0572 1560)
USB interface (0572 0500)
PC software ComSoft Basic on CD-ROM (0572 0580)
Wall bracket
2 x Lithium batteries CR2032 (0515 0028)
Calibration protocol (0520 0153)
Testo 174T – Mini Data Logger
Order-Nr. 0572 1560
General technical data
Weight
35 g
Dimensions
60 x 38 x 18.5 mm
Operating temperature
-30 to 70 °C
Product-/housing material
Plastic
Protection class
IP65
Channels
1 internal
Product colour
white
Standards
EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate
1 min – 24 h
Battery type
2 x 3V button cell (CR 2032)
Battery life
500 days (15 min measuring cycle, +25 °C)
Memory
16,000 measuring values
Storage temperature
-40 to +70 °C
Temperature – NTC
Measuring range
-30 to +70 °C
Accuracy
±0.5 °C (-30 to +70 °C)
Resolution
0.1 °C
USB interface for data loggers
Order-Nr. 0572 0500
General technical data
Product-/housing material
Plastic
Product colour
white
Weight
150 g
Testo ComSoft Basic v5 SP 6.3 – Logger software
Order-Nr. 0572 0580
General technical data
System requirements
Windows XP (Service Pack 3); Windows Vista; Windows® 7; Windows® 8; Windows® 8 Pro; Windows® 8 Enterprise; Windows® 10
