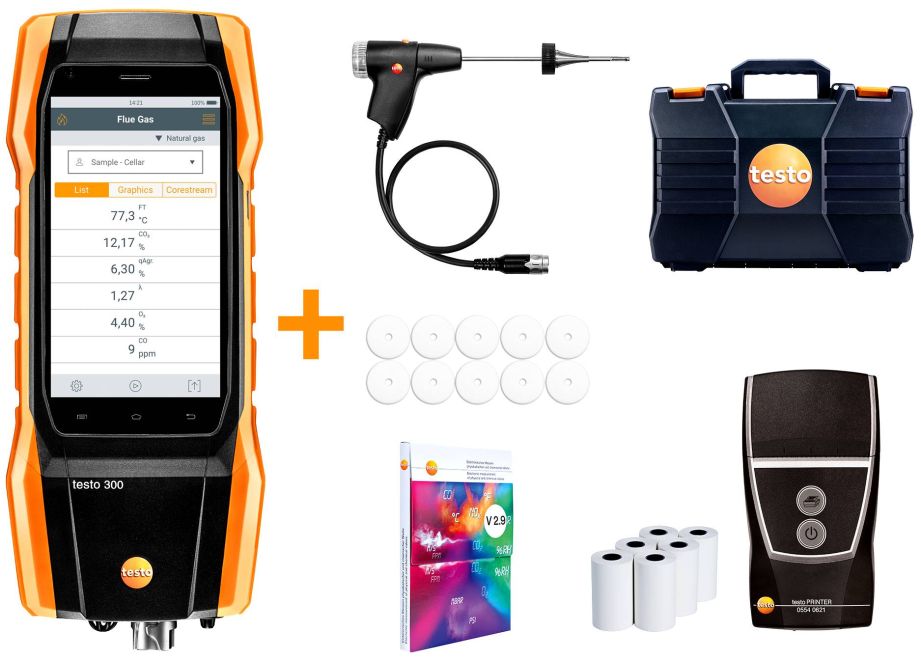

Testo 300 Long Life – ( O2, CO H2-compensated up to 30,000 ppm, NO ) Printer kit

Intuitive, smart, efficient: intuitive measurement menus,
fast-response
Smart-Touch operation, on-site documentation
e-mailing of reports
Including O2, NO & CO H2-compensated sensor
up to 30,000 ppm

High-quality sensor technology with up to 6 years’ service life

modular flue gas probe, spare dirt filters,
to Bluetooth® printer, spare thermal paper, EasyHeat software, case

Product Description

Carry out installation and maintenance work on heating systems several times a day using
the flue gas analyzer with Longlife sensors.

Bluetooth® printer, case and practical accessories.

Testo 300 Longlife flue gas analyzer with smart-touch operation – Features

Impressive measuring technology and quality

O2, NO sensor and H2-compensated CO sensor up to 30,000 ppm thanks to integrated
fresh air dilution
Longer sensor service life thanks to automatic sensor protection
Integrated draught and gas zeroing without removing the probe – the flue gas

probe can remain in the flue during zeroing
For intensive daily use: high-quality Longlife sensors for
O2 and CO with a service life of up to 6 years.
That means at least one sensor replacement is saved in the course of a normal working life
TÃœV-tested according to first German Federal Immission Control Ordinance
(BImSchV) and EN 50379, Parts 1-3
Integrated fine pressure and 4 Pa measurement for legally prescribed
measurements
Manufacturer’s warranty of up to 5 years on O2 and CO sensor with product registration
without a maintenance contract.

Versatile probes and fast probe changes: take advantage of quick-change probes
and the multi-functional handle for attaching a variety of probe shafts
(each available to order separately).
You can for instance use longer probe shafts for flue gas pipes
with larger diameters or flexible probes for difficult-to-access measuring points
Optionally available probes and accessories for further measuring tasks,
such as gas flow pressure measurement,

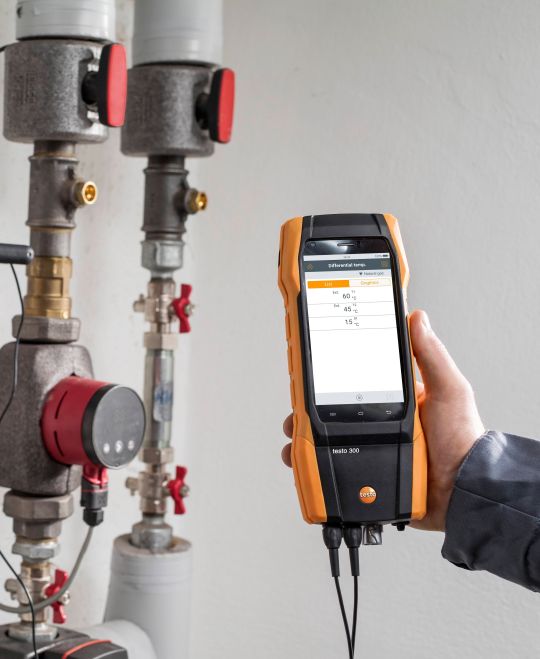

gas pipe testing, differential temperature measurement
and ambient CO measurement

Smart, intuitive, efficient: easy operation in day-to-day work

• Smart-touch display for intuitive operation of the flue gas analyser:



• the display responds without delay



• just as easy as on your smartphone



• Get the measurement result faster:



• clearly structured measurement menus for all relevant measurements



• Create documentation (including measuring value



• measuring location, customer data) easily on site



• Save PDF measurement reports directly in the instrument



• and always have them available



• Signature function:



• your customer can sign measurement reports directly on the instrument



• E-mail measurement reports directly to the office



• or to customers via WLAN (hotspot)

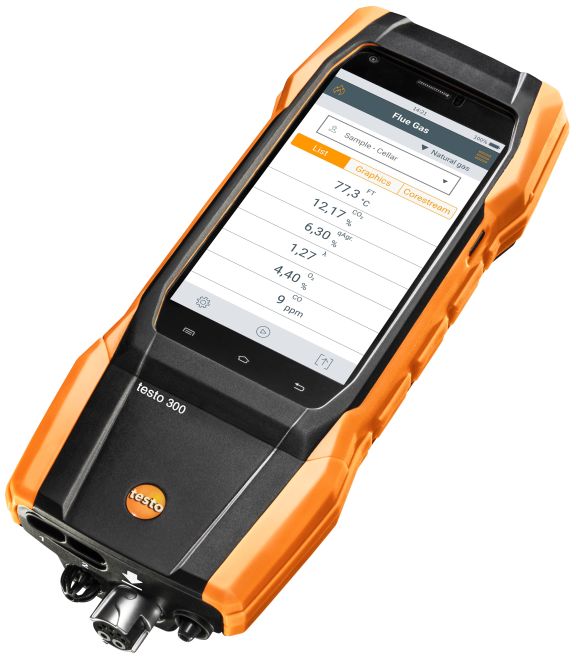

• Large 5-inch HD display –



• enables you to see all the system’s parameters immediately



• Testo interface function for direct data transfer of



• measuring values to industry/customer-specific software

*

• Ready to use straight away:



• in standby mode,



• the testo 300 is ready to measure at the touch of a button.



• Use it straight away with the next customer –



• because you no longer need to wait for the end of the zeroing phase

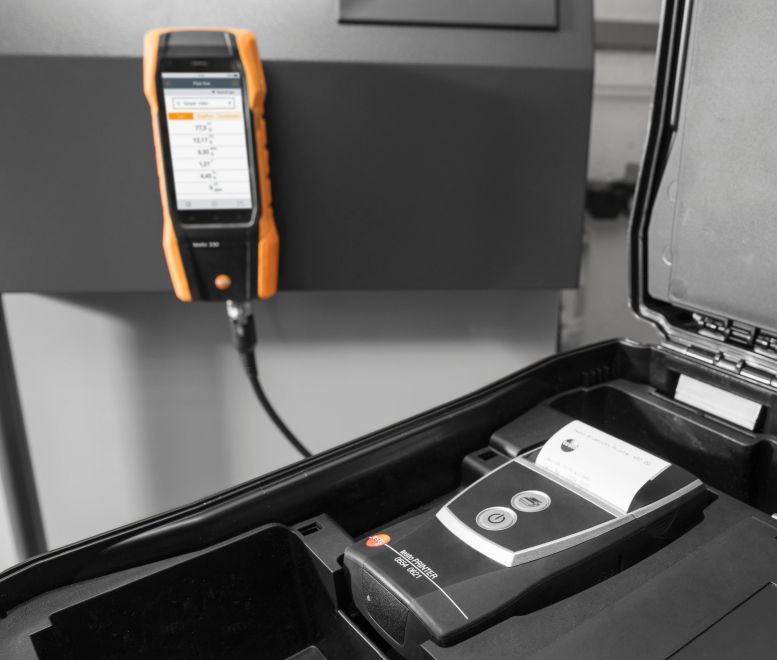

• Integrated Bluetooth® interface:



• immediate printout of the measuring values on site



• with the appropriate printer



*Note:
the manufacturer has to integrate an interface
into the industry software to use the function

Other advantages

• 10-hour rechargeable battery life:



• an average measurement period of 2 hours



• means the flue gas analyzer is capable of being used for one week



• Integrated, extra-strong magnets for easy fixing during the measuring process



Details on kit components

USB mains unit incl. cable

• Power supply

5 V mains unit, 1 A, 230 V, Micro USB

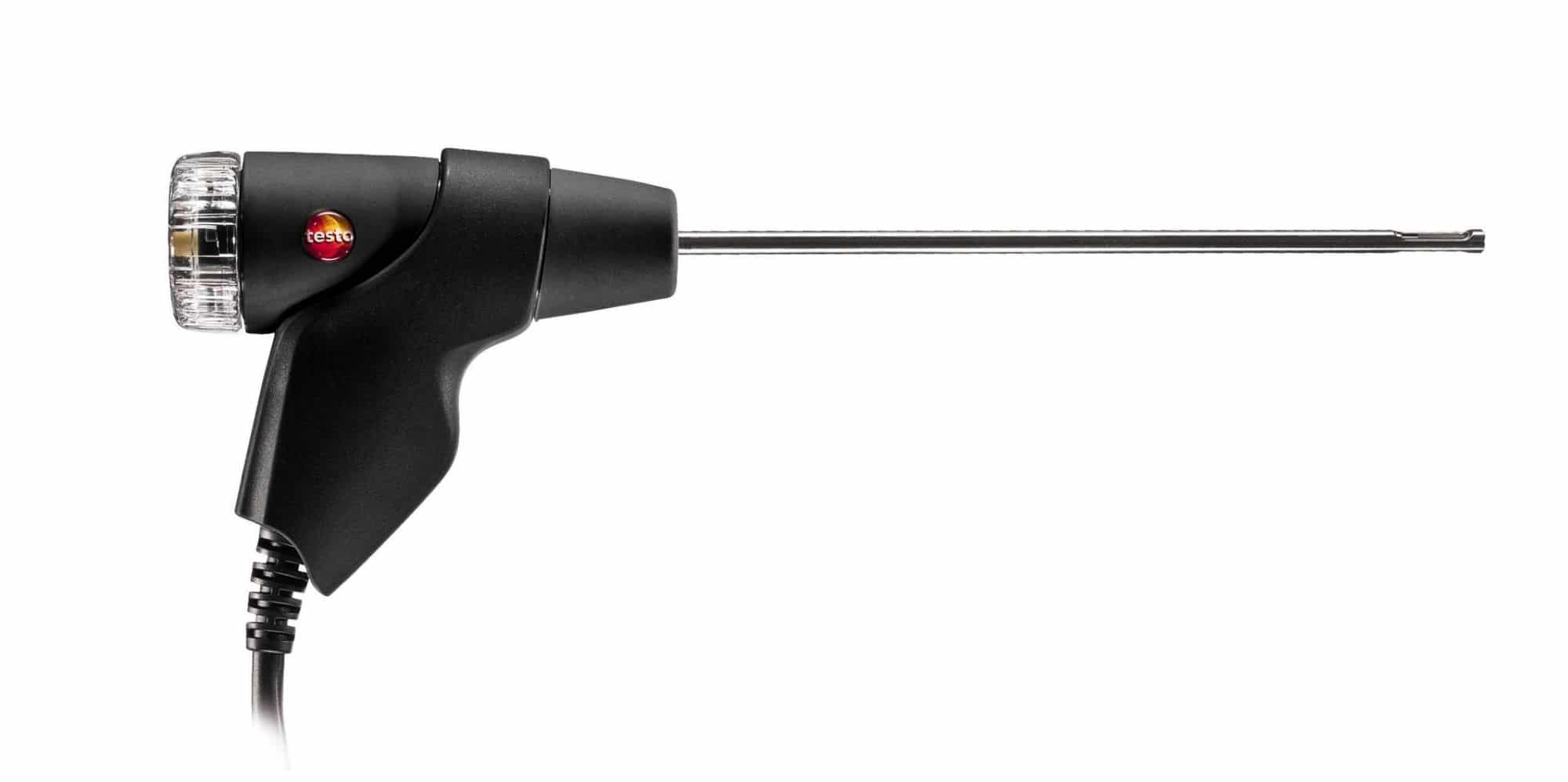

Modular flue gas probe, 180 mm, Ø 8 mm, Tmax 500 °C, TÃœV-tested

Easy probe shaft replacement via quick-change click system
Flue gas path and temperature channel
can be connected to the instrument via a bayonet lock
Integrated dirt filter protects instrument and sensors
Integrated thermocouple probe for temperature measurements up to 500

°C

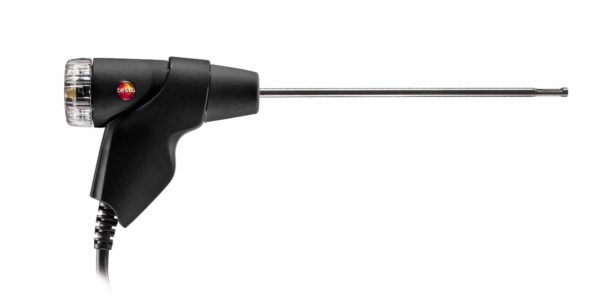

On the TÃœV-tested modular flue gas probe
with 180 mm long probe shaft,
the flue gas path and temperature channel
can be conveniently connected to the measuring instrument
via bayonet lock.
probe shaft is also easy to replace,
thanks to the quick-change click system on the handle.





Spare particle filter, 10 of

• Pack of 10 spare particle filters

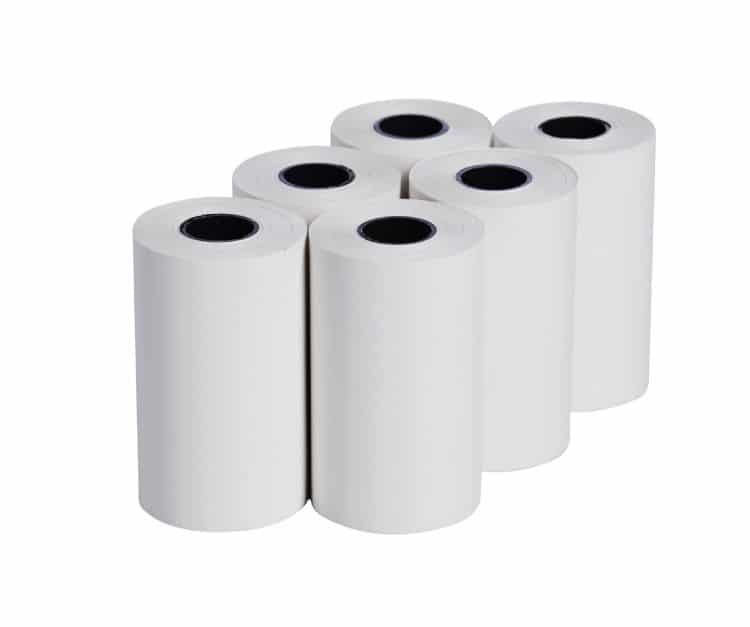

Spare thermal paper

• • Spare thermal paper for printer, permanent ink

Easyheat PC analysis software

• • • Easyheat PC analysis software, shows measurement in form of diagrams, tablesandmanages customer data.



• • • Easyheat allows the management of data obtained with the testo 330 and testo330LL, and the corresponding customer and measurement site data, on a PC. The

      measuring instruments testo 330 and testo 330 LL can be configured via easyheat.

      The necessary settings of the measuring instrument can thus be carried out at any

      time directly from the PC.



Instrument case

• • • Instrument case (height: 130 mm) for instrument, probes andaccessories

Applications

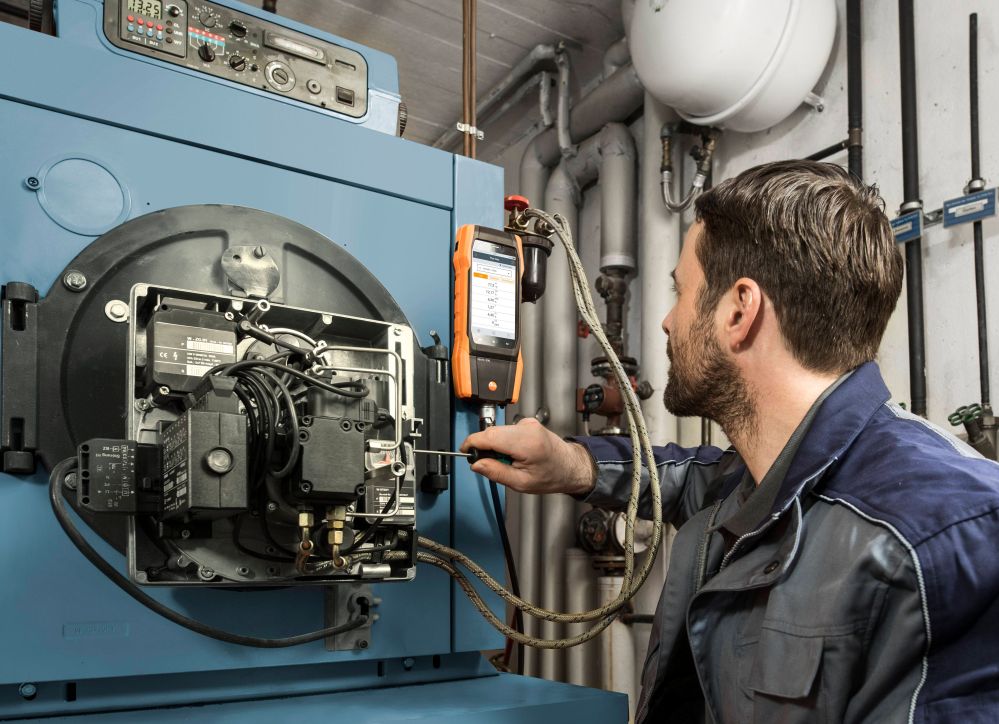

Flue gas measurement on heating systems

Ideal for measurements involving heating systems:

• • • • High-quality Longlife sensors with a service life of up to 6 years, smart-touch operation, clearly structured measurement menus, creation of documentationon site, e-mailing of reports, large HD display, robust housing



Further areas of application:

• • • • Gas flow pressure measurement*, gas pipe test*, differential temperaturemeasurement (flow and return temperature on heating systems)*, ambient COmeasurement*, flue draught measurement on heating systems*, integrated 4

        Pa measurement for combustion equipment



* Please note: additional probes or accessories are required for these

measurements and have to be ordered separately.

Delivery Scope

• • • • testo 300 Longlife flue gas analyzer with O2 and CO H2-compensated sensor upto 30,000 ppm, NO – can be retrofitted (0633 3004 83)



• • • • USB mains unit, including cable (0554 1105)



• • • • Modular flue gas probe 180 mm, Ø 8 mm, Tmax. 500°C; TÃœV tested and certified;2.2 m hose (0600 9760)



• • • • Spare dirt filters for modular flue gas probe; 10 off (0554 3385



• • • • BLUETOOTH®/IRDA printer, including 1 roll of thermal paper and rechargeablebattery (0554 0621)



• • • • Spare thermal paper for printer, indelible ink (0554 0568)



• • • • EasyHeat PC software (0554 3332)



• • • • Instrument case (height: 130 mm) for instrument, probes and accessories (05163300)



General technical data
Length probe shaft	180 mm
Cable length	2.2 m
Diameter	8 mm
Temperature maximum	500 °C
