Testo 549i - High-pressure gauge (Bluetooth)

£76.00 £91.20 (Inc. VAT)

Product Description

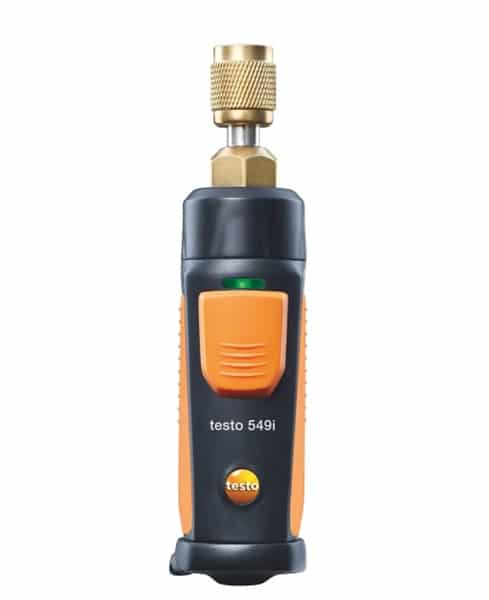

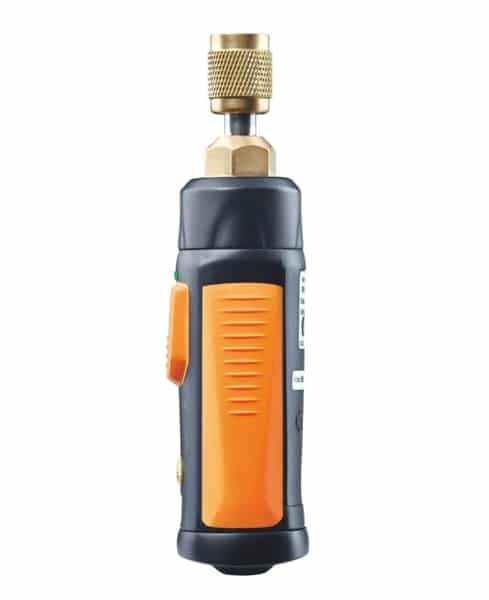

Testo 549i – High-pressure gauge (Bluetooth)

High-pressure gauge operated with smartphone, incl. batteries and calibration protocol. PLEASE NOTE: DUE TO HIGH DEMAND CURRENTLY THIS PRODUCT MAY TAKE UP TO 3 WEEKS FOR DELIVERY

Smart Phone + Smart Probes = Smart Work

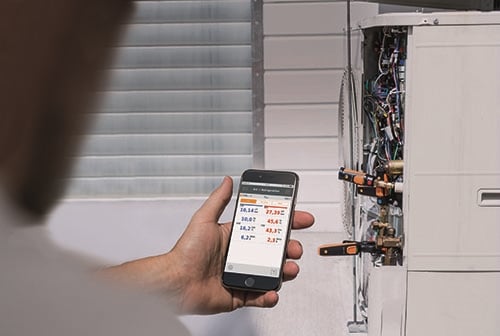

The handy high-pressure gauge testo 549i, in combination with a smartphone or tablet, is suitable for service and error detection on air conditioning and refrigeration systems, as well as for their installation. The measuring instrument can be quickly and easily attached directly to the pressure connection. When working at pressure connections which are far apart, the testo 549i makes the application considerably easier – thanks to a wireless connection to a smartphone or tablet. Also useful: since no hoses are needed for the measurements, very little or no refrigerant is lost.

And if the clamp thermometer testo 115i is used simultaneously, individual refrigeration system parameters such as superheating can be calculated. Users can read off their measurement values comfortably in the testo Smart Probes App installed on the end device. The testo Smart Probes App additionally enables the automatic calculation of evaporation and condensation temperatures.

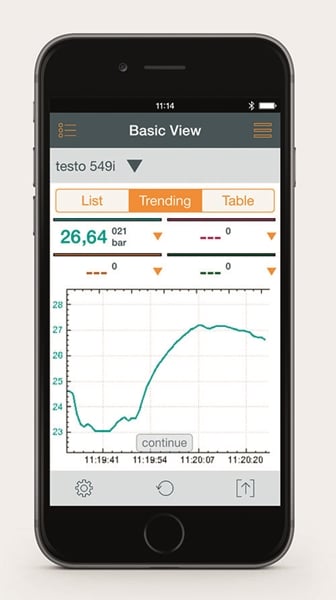

All measurement data are presented either as a diagram or in tabular form. The measurement protocols can then be directly sent as PDF or Excel files.

Strengths:

Compact professional measuring instrument from the Testo Smart Probes series, for use with smartphones/tablets
Measurement of high and low pressure
Fast and easy installation at a pressure connection
Low refrigerant loss thanks to hoseless application
Measurement data analysed and sent via testo Smart Probes App
Small, compact, and easy to transport

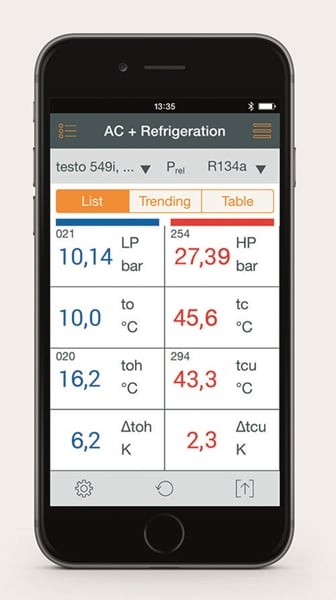

Testo Smart Probes App

The App turns your smartphone/tablet into the display of the testo 549i. The operation of the measuring instrument as well as the display of the measurement values take place by Bluetooth via the Testo Smart Probes App on your smartphone or tablet – independently of the measurement location. In addition to this, you can use the App to create measurement reports, add photos and comments to these, and send them by e-mail. The Testo Smart Probes App is completely free and is available for iOS from the App Store and Android via Google Play.

Sensor type	Pressure
Measuring range	-1 to 60 bar
Accuracy ±1 digit	0.5 % of final value
Resolution	0.01 bar
Connection	7/16″ – UNF(CR2032)
Overload rel.	65 bar

Sensor type	NTC
Measuring range	-20 to +60 °C
Accuracy ±1 digit	±0.5 °C
Resolution	0.1 °C

General Technical Data
Compatability	requires iOS 8.3 or newer / Android 4.3 or newer requires mobile end device with Bluetooth 4.0
Storage temperature	-20 to +60 °C
Operating temperature	-20 to +50 °C
Battery type	3 micro batteries AAA (CR2032)
Battery life	150 hrs
Measureable media	CFC, HFC, HCFC, N, H2O, CO2
Dimensions	125 x 32 x 31 mm
Warranty	2 years
