£120.00 £144.00 (Inc. VAT)

Product Description

Dual Input Thermocouple Thermometer

  • Dual input
  • Seven thermocouple types
  • Infra-red capability
  • Differential display
  • °C/°F/°A selectable
  • Self-calibrating
  • Simultaneous display of both inputs or differential and input

Features

This instrument is designed for applications requiring either direct or differential measurement. It incorporates many features such as

  • °C / °F / °A Switchable
  • I/P 1 , I/P 2 , DIFFERENTIAL, HOLD
  • True arithmetic differential reading or differential result and input 1
  • Simultaneous display of both inputs
  • Resolution of 0.1° to 1000° autoranging
  • Switchable thermocouple types K / T / J / R / N / E / S
  • Infra-Red compatability
  • Full retention of thermocouple type and temperature scale
  • User configurable Auto Swith Off capability
  • Overrange / Open circuit sensor indication
  • Low battery indication
  • Supplied complete with shock resistant holster
  • IP67 casing

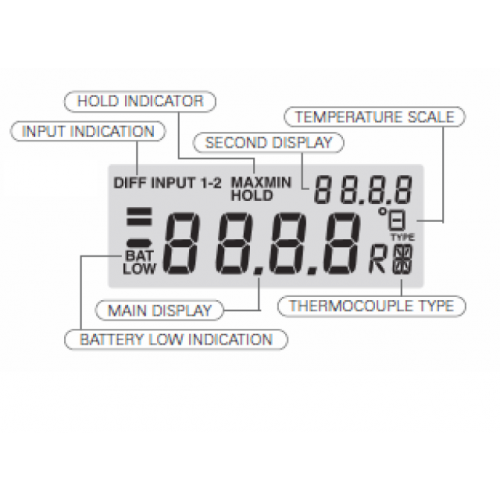

The custom display allows input 1 to be shown on a secondary display whilst displaying differential
measurement. Input 1 and input 2 may also be displayed simultaneously

Technical Data
AMBIENT OPERATING RANGE -30 to 50 °C
STORAGE TEMPERATURE RANGE -40 to 50 °C
HUMIDITY 0 to 70% R.H.
MEASUREMENT RANGES K -200 to 1372 °C
T -200 to 400 °C
J -200 to 1200 °C
R 0 to 1767 °C
N -200 to 1200 °C
E -200 to 1000 °C
S 0 to 1767 °C
THERMOCOUPLE TYPES K T J R N E S
INFRA-RED SENSOR (Exergen K80) K80 -50 to 250 °C
TEMPERATURE SCALES °C / °F / °A
ACCURACY @23°C +/- 0.1% OF READING +/- 0.2 °C
CHARACTERISING ACCURACY LESS THAN 0.05 °C
TEMPERATURE COEFFICIENT 0.01% OF READING /°C
COLD JUNCTION COMPENSATION 0.0075 °C/°C
RESOLUTION 0.1° to 1000, 1° ABOVE 1000
BATTERY PP3 9V I.E.C. 6F22
BATTERY LIFE (INTERMITTENT USE GREATER THAN 200 HOURS (ALKALINE)
WEIGHT 155 gms
DIMENSIONS 130 X 70 X 33 mm
