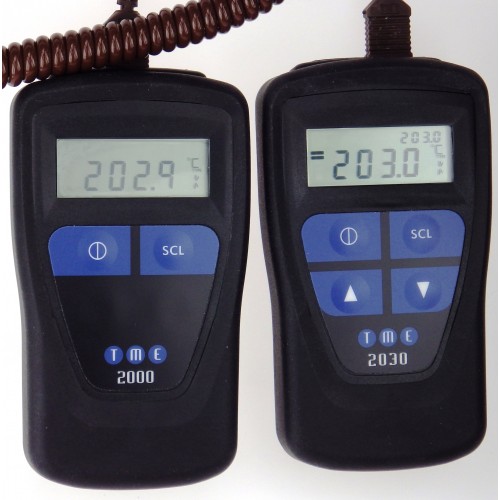

Thermocouple Simulator / Thermometer
Features
A high accuracy instrument that will give you confidence in your other instruments.
The simulator was designed to simulate a known temperature as a cross-check on other
instruments calibration accuracy.

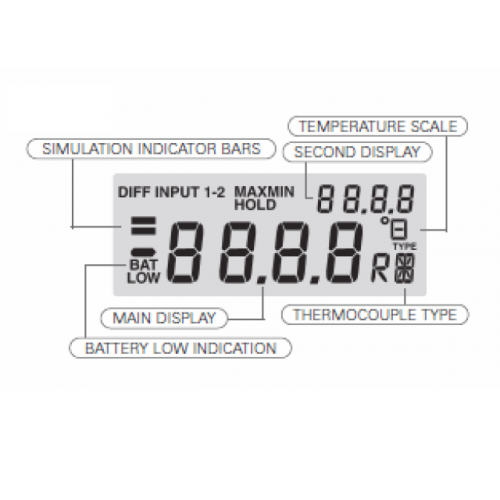

The custom display is used to display the actual temperature the simulator is producing. When this
coincides with the desired temperature the instrument is ready for use.
| Technical Data | |
|---|---|
| AMBIENT OPERATING RANGE | -30 to 50 °C |
| STORAGE TEMPERATURE RANGE | -40 to 50 °C |
| HUMIDITY | 0 to 70% R.H. |
| MEASUREMENT RANGES | mV -10 to 60 mV K -200 to 1372 °C T -200 to 400 °C J -200 to 1200 °C R 0 to 1767 °C N -200 to 1200 °C E -200 to 1000 °C S 0 to 1767 °C |
| THERMOCOUPLE TYPES | K T J R N E S |
| TEMPERATURE SCALES | °C / °F / °A |
| ACCURACY @23°C | +/- 0.1% OF READING +/- 0.2 °C |
| CHARACTERISING ACCURACY | LESS THAN 0.05 °C |
| TEMPERATURE COEFFICIENT | 0.01% OF READING /°C |
| COLD JUNCTION COMPENSATION | 0.0075 °C/°C |
| RESOLUTION | 0.1° to 1000, 1° ABOVE 1000 |
| FUNCTIONS | MEASURE TEMPERATURE / SIMULATE T/C |
| BATTERY | PP3 9V I.E.C. 6F22 |
| BATTERY LIFE (INTERMITTENT USE | GREATER THAN 200 HOURS (ALKALINE) |
| WEIGHT | 155 gms |
| DIMENSIONS | 130 X 70 X 33 mm |
